GAS BOOSTER FOR LOW PRESSURE APPLICATIONS

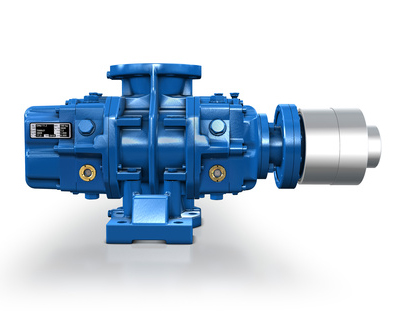

The GMd series, made by AERZEN, is the universal gastight booster solution for the low pressure range. Equipped with a magnetic coupling, it ensures a maintenance-free sealing concept. Locking systems for sealing the drive shaft are completely eliminated and allow a low-maintenance machine concept. The separation between oil and process side is achieved by a special piston ring seal. The robust two-lobe design allows a design pressure of 7.0 barg according to AD2000/DIN EN 13445. 16 sizes guarantee optimum efficiency and operation conditions for every design case.

DESIGN

Nodular iron, steel casting or stainless steel. Housing with circular ?anges and O-ring seals.

SEALINGS

Shaft sealing by hermetically sealed magnetic coupling. Alternatively oil-purged double-acting mechanical seal with thermosiphon cooling for torques ≥ 550 Nm.

DIRECTION OF FLOW

Vertically downwards.

DRIVE

Direct coupling with motor (design B35 for magnetic coupling or B3 for alternative shaft sealing via mechanical seal).

BOOSTER DESIGN

Max. pressure increases from 1.0 bar abs. to 7.0 bar abs.

Housing pressure proof for PN 25 with O-ring seals

Oil splash lubrication

Separation of the oil chambers and the conveying chamber by PEEK piston ring seals, gas shut-off possible

技術參數

結構形式：正排量風機

體積流量：60 止于  14.000 m3/h

介質：工藝氣體 , 冷卻氣體

輸送：無油

壓力操作：最大表壓（單位：7.000mbar）

應用

PROCESS GAS BLOWERS FROM AERZEN WORK RELIABLY IN ALL INDUSTRIES AND IN ALL MARKETS AND COUNTRIES OF THE WORLD.

AERZEN offers the process gas and refrigeration industry an enormously wide range of blower technologies - perhaps the widest ever. The machines work in a stand-alone manner, in a machine or container combination, onshore and offshore. You find them in really all key industrial applications.

INDUSTRIAL GASES

Air separation

OIL & GAS EXTRACTION AND STORAGE

Gas recovery (VRU)

Decarbonisation/tertiary oil recovery

CHEMICAL INDUSTRY

Acetylene circular gas

PETRICHEMISTRY, REFINERIES

Ethylene, propylene, olefin (feed gas compression)

Butadiene (extractive distillation)

INDUSTRIAL RESEARCH & DEVELOPMENT

Circular processes (inert gases, purge gases)

GLASS INDUSTRY

Oxygen injection (melting furnace)

Tin bath protective atmospheres (hydrogen, nitrogen)
